RBF42WC-FG

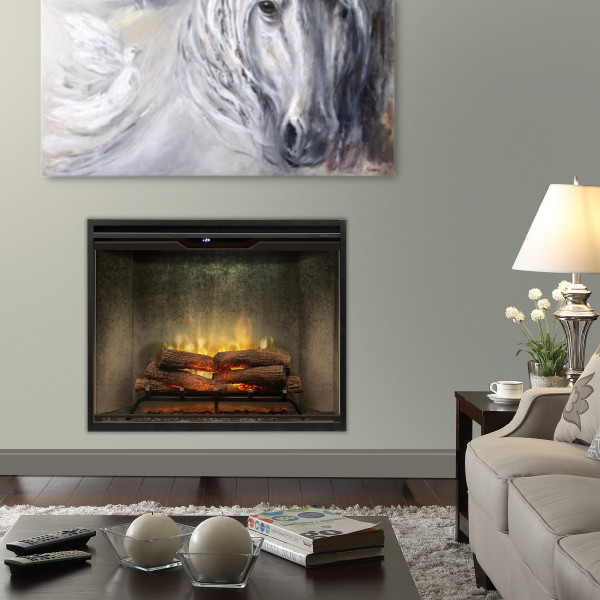

Dimplex Revillusion® 42" Built-In Firebox with Front Glass and Plug Kit

Enjoy classic, elegant features with Revillusion®— the electric fireplace inspired by traditional design. You’ll be entranced by the flickering flames as they dance between glowing logs, surrounded by a weathered concrete interior with natural soot markings. The timeless appeal of Revillusion® creates an authentic, everlasting impression.
Features
  • Revillusion® Flame Technology produces ultrarealistic flames that mimic natural fire
  • Includes tempered front glass, plug kit, and mood-maker remote control
  • Powerful fan-forced heater provides on-demand heat up to 1,000 square feet
  • Features Realogs® handcrafted and molded from real wood logs, which contain an inner lit LED light that adds a glowing, pulsating effect as if the logs are burning
  • Flame base colors include red and orange
  • Ability to dim the flames which simultaneously lowers flame height
  • Includes a translucent acrylic panel that reflects the flames to make them appear from within the logs
  • Enjoy a full view of the fireplace interior with the ability to see clearly through the flames—no obtrusion
  • Includes mood lighting on the side, back, and top of the firebox interior. Colors include white, yellow, and red
  • Adjust brightness of interior lighting from high to low to suit the room, including midnight mode which turns off lighting to reduce TV glare
  • The ambient light sensor automatically adjusts the firebox light to suit the room day or night
  • Also available in herringbone brick interior (RBF30, RBF36, RBF42, RBF36P, RBF24DLX)
  • Enjoy the ambiance of a fire during the warmer months by deactivating the heater via the controls
  • Fireplace heater can be permanently disabled by removing the electronic jumper on the main control board
  • As the flames do not emit heat, the front glass remains cool to touch, ensuring safety for children and pets
  • No venting, gas lines, or piping required; simply frame, wire and finish for quick and easy installation
  • Hardwire to 120V/240V power supply or use the included 120V plug-in cord kit
  • 2-year limited warranty

Details

UPC
781052152199
Model Name/Series
  1. Revillusion®
Material Number
500002411
Model #
RBF42WC-FG

Product Information

Fuel Type/ Power Source
Electric
BTU
4436/6739/8786
Voltage
120/208/240
AMPs
10.8/9.5/10.7
Wattage
1300/1975/2575
Product Depth/Length (in)
12.07
Product Width (in)
43.23
Product Height (in)
31.08
Product Weight (lb)
111.850
Product Depth/Length (cm)
30.66
Product Width (cm)
109.8
Product Height (cm)
78.94
Product Weight (kg)
50.73
Viewing Area Dimensions - Height (in)
27.33
Viewing Area Dimensions - Width (in)
41.85
Warranty
2 yr parts, 1 yr service, limited
